Key Concepts

All across the OpenFn Integration Toolkit and this documentation site you'll find some OpenFn-specific terminology that's important to understand. This page is your reference guide—a glossary of the most important OpenFn-specific words and what they mean.

Something missing?

If you've come across a word, phrase, or concept that you think is missing from this page, open an issue on OpenFn/docs, suggest an edit to this page, or ask on the Community

Please note that if you're looking for a glossary for generic terms used in data-integration (rather than this OpenFn-specific stuff) head over to the Glossary for Integration page in the Design section. Otherwise, read on!

Project

A Project is an administrative grouping in OpenFn like a "workspace".

On the platform (OpenFn/lightning), Projects define who can access your OpenFn workflow configuration & history. Projects have an owner and one or more Collaborators.

In local deployment and development, Project also corresponds to a project.yaml file, which defines a project' configuration.

In either case, a Project contains Workflows, Triggers, Credentials, and everything you need to automate and integrate with OpenFn.

Workflow

tip

Workflows are the "what to do" part of automation!

A Workflow is a collection of a Trigger, Steps, Paths, and custom logic connected together to automate a specific business process or task. A Workflow is configured via the Canvas in the web app, or locally (via code).

OpenFn automation centers around Workflows, which may have one or multiple Steps. Workflows can be run in real-time (based on an event -e.g., new patient registration), on a scheduled basis (e.g., every day at 8am), or manually on-demand.

Think of workflow as a set of instructions you might give a staff member (e.g., please create a new Patient record in OpenMRS when a form containing a newly registered client is received from CommCare, export data to DHIS2 every week on Friday 11pm, send SMS with payment confirmation number when payment confirmation message is received etc.).

Common Workflows automate:

  • Reporting for enhanced/faster program monitoring (especially mobile-to-MIS reporting)
  • Rote data ETL (extract, transform, load) and data cleaning steps
  • Alerts (SMS, email)
  • Referrals between partner systems
  • Task assignments or approvals
  • Grievance or case reporting
  • Financial tansactions or payments
Workflows are reusable

Workflows are fully configurable and reusable. They can also be chained together to automate multi-step processes and two-way data syncs to keep data consistent between multiple applications (using multi-app Saga patterns).

Adaptor

tip

Adaptors are the "where to do it" part of automation!

OpenFn Adaptors are open-source modules that provide your Workflows with the features they need to communicate with a particular system's API. Some examples are dhis, postgresql, and http etc. There are more than 70 active adaptors at the moment, and anyone is free to build or enhance them. See GitHub/Adaptors for the source code.

Credential

tip

Credentials are the "how to log in" part of automation!

A Credential is used to authenticate with a destination app (e.g., Database username, password & login URL) so that a Workflow Step can run. Via OpenFn's security model, Credentials are separated from the Workflows themselves to ensure that stored usernames and passwords (which are all encrypted) do not get leaked or accessed by the wrong people.

Trigger

tip

Triggers are the "when to do it" part of automation!

A Trigger determines how and when Workflows should execute automatically (e.g., real-time or schedule-based). When activated, Triggers create a new Work Order and run (or "execute") the Workflow.

A "Webhook Event" Trigger may be configured if you want your Workflow to execute in real-time when an event in an external app occurs (e.g., new form submitted, new notification received).

A "Cron" Trigger may be configured if you want your Workflow to execute according to a specific schedule (e.g., daily at 8am, the 1st Monday of every month).

Work Order

tip

Work Orders capture "when & what triggered" the automation, and help us monitor if and when the Workflow is successfully completed.

A Work Order is a request to execute a Workflow with a given input (e.g, a new form submission or patient record that needs to be processed).

A Work Order is created every time a Workflow's Trigger is activated, or manually by an Admin user.

For a Work Order to be completed successfully, the Work Order should reach an ending Step succesfully (without errors) - this ensures that the processing has been completed. Multiple Workflow "Runs" may be required for a given Work Order to be considered succesful.

Work Orders enable users to closely monitor whether unique inputs (e.g., "patient record 123") are successfully processed by a given workflow, for a "case-management" auditing experience.

Imagine that a Workflow is configured to create a new patient in OpenMRS whenever a new case is opened in CommCare. Over the next week, if 5 cases are opened in CommCare, you’ll see 5 different Work Orders for this one Workflow. If 4 Work Orders are successful and one has failed, you’ll see 4 new patients in OpenMRS, and your system administrator will have been notified that one of those patients couldn’t be created (or whatever more robust error-handling you’ve set up will take place.)

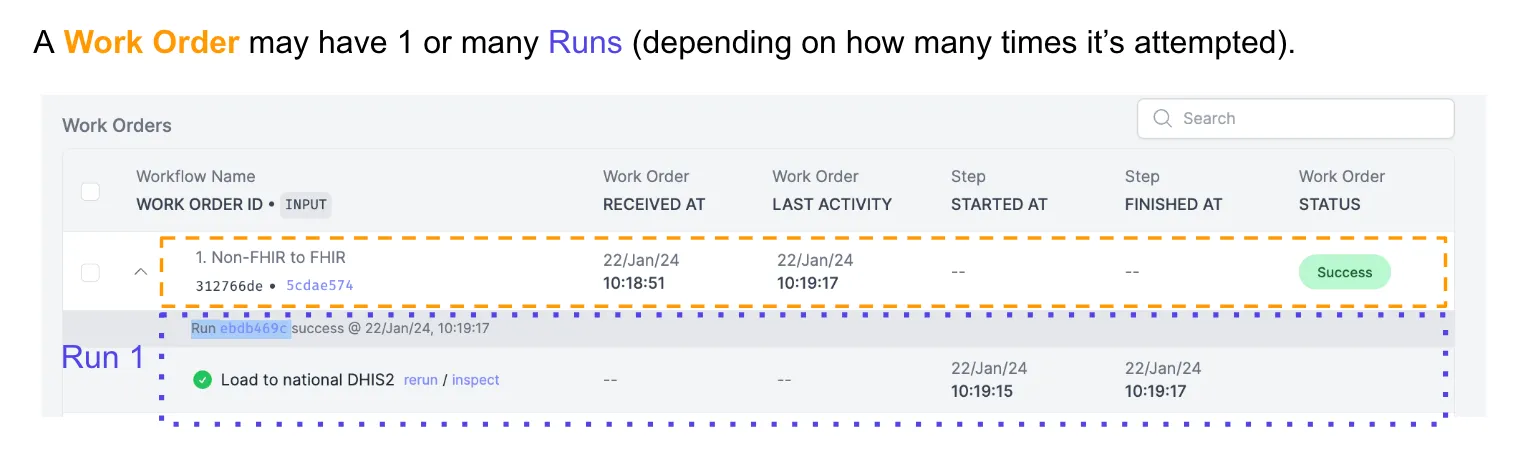

Work Order

note

There’s usually a 1-to-1 mapping between Work Orders and the real-world things you’re working with. I might create a Workflow that gets all updated event data from DHIS2 for the last 2 weeks and publishes it to a public map using CartoDB. This Workflow will be triggered at specified time intervals, every 2 weeks in this case, and after a month, we’ll only see 2 Work Orders in OpenFn (that’s one every two weeks). Each Work Order will have success or failed status with related Runs that capture the details of each transaction and how many event records may have been processed.

Run

tip

Runs capture "what happened" in the automation!

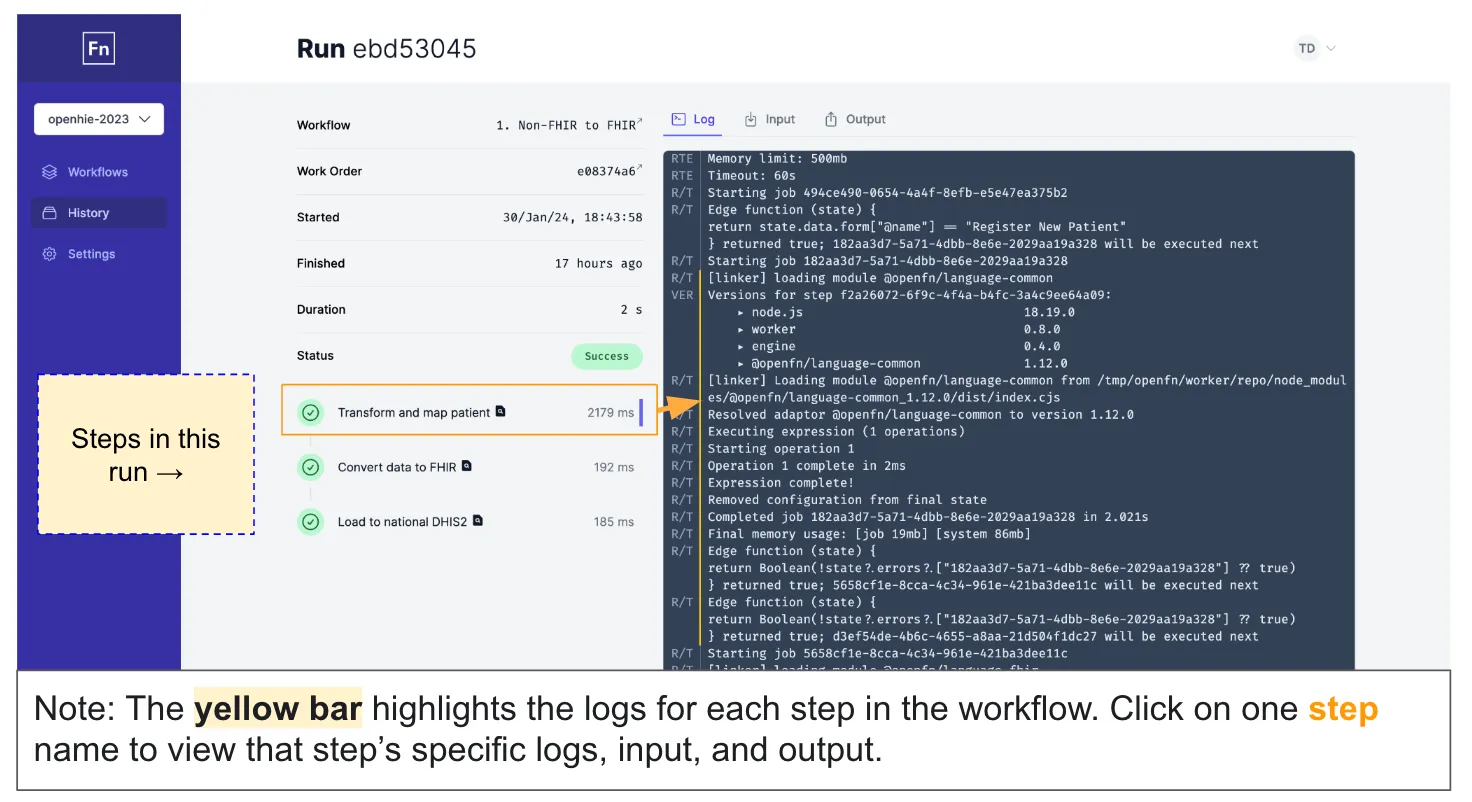

A Run is an individual execution attempt to complete a Work Order. Multiple Workflow Runs may exist to fulfill one Work Order (because the first Run might fail, so it needs to be retried to successfully process).

Runs have start times, end times, logs, and status codes that indicate when they took place, what they did, and whether or not they succeeded.

OpenFn Workflow Canvas

Imagine that a Workflow is configured to create a new patient in OpenMRS whenever a new case is opened in CommCare. Today if 1 patient is created, then:

  • 1 Work Order will be created in OpenFn. This will trigger a Run to execute to create the patient in OpenMRS.
  • If that Run fails due to an error (e.g., OpenMRS user password is incorrect, or patient is missing required information), then the "Status" of that Run and related Work Order will show as failed.
  • OpenFn users can correct the error and then choose to "rerun" that failed Run. This will create a 2nd Run related to the original Work Order. If it successed, then the "Status" of the 2nd Run and Work Order will show as "success".

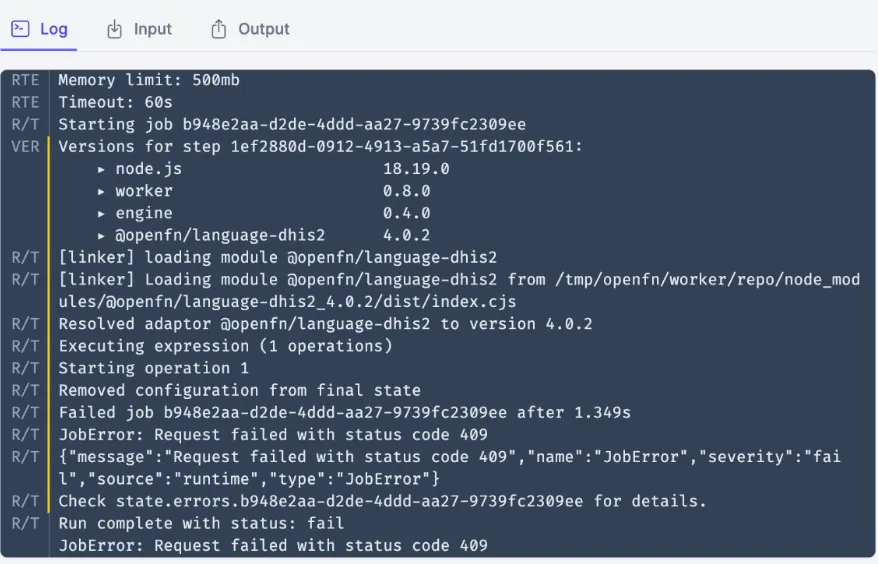

Logs

Logs are the records generated by the workflow execution engine to capture the activities performed when running a Workflow or specific Step.

OpenFn developers can control what appears in Logs by editing console.log(...) statements in the Workflow job expressions of individual Steps.

Logs

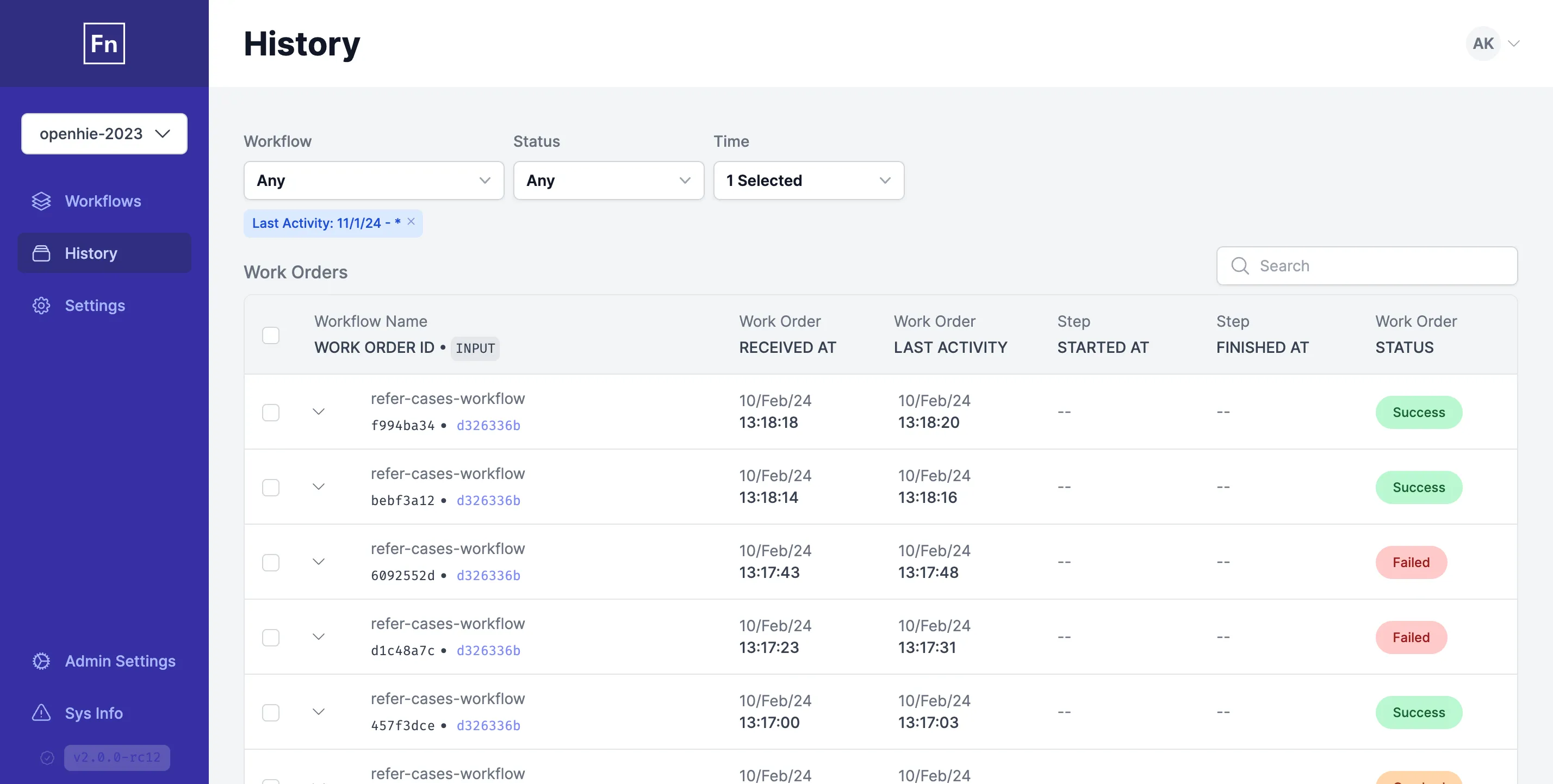

History

On the platform, the History page provides a list of all of the Work Orders and Runs that have been processed in a Project.

History

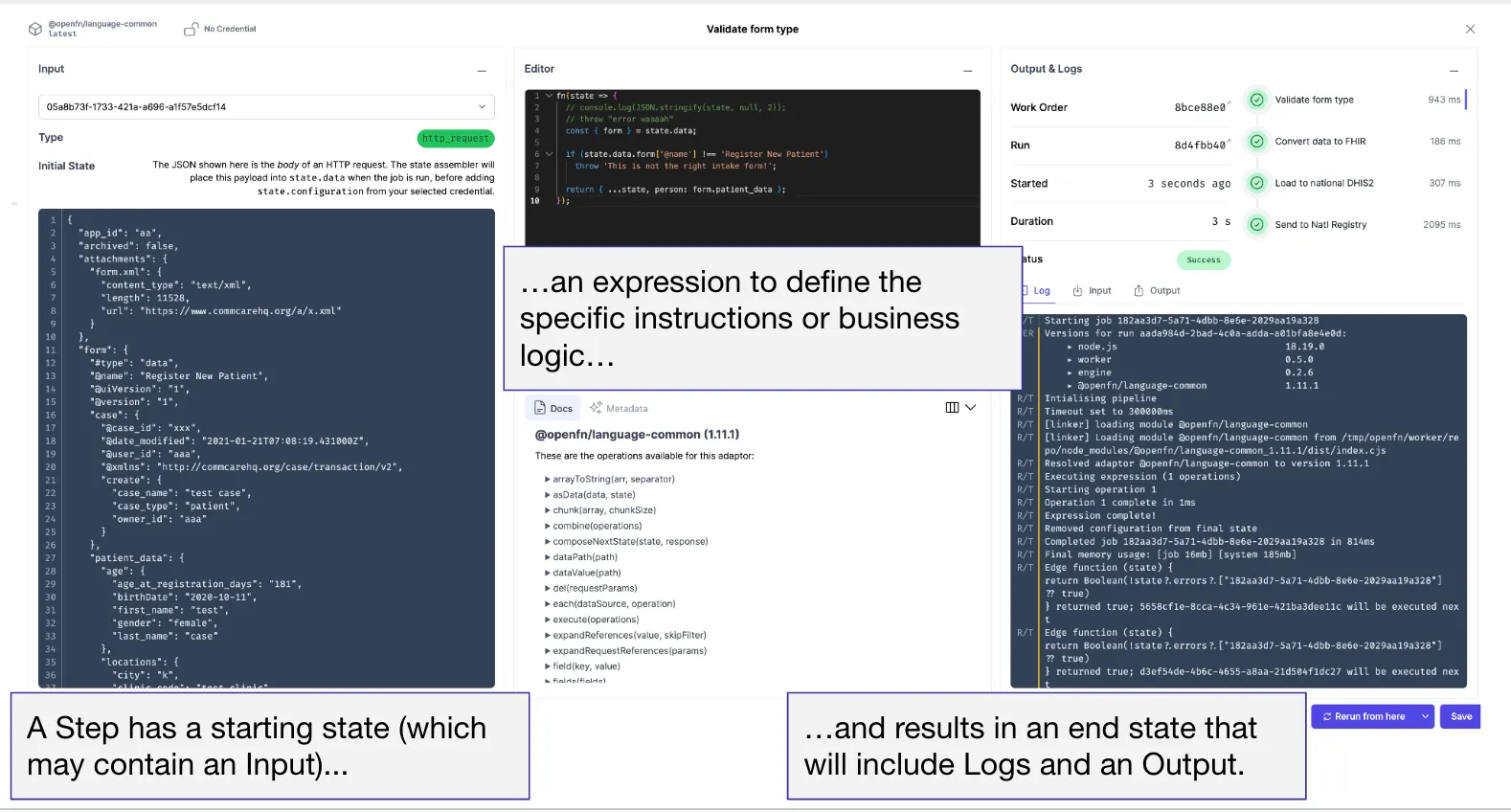

Inspector

On the platform, the Inspector interface allows users to edit, test, and run workflows.

The Inspector has 3 key interfaces: Input, Editor, & Output.

Inspector

Input

An Input is the data (json) that is used as the starting Input for a Workflow Step to utilise when it's run. Every Run will have an Input (initial state) and Output (final state).

Inputs may be created automatically by a webhook event (e.g., a message forwarded or JSON payload posted to OpenFn) or another Workflow Step, or manually by an OpenFn user.

Example Input from a form submission from a mobile data collection app (e.g., Kobo, ODK, CommCare):

{
"data": {
"form": {
"@name": "Register New Patient",
"case": {
"@case_id": "a9bX12c",
"@date_modified": "2021-01-21T07:08:19.431000Z",
"@user_id": "aaa",
"@xmlns": "http://commcarehq.org/case/transaction/v2",
"create": {
"case_name": "John Doe",
"age": 16,
"case_type": "patient",
"owner_id": "alan.worker"
}
}
}
}
}

Output

An Output is the final data (json) that is outputted by a workflow Step, according to the business logic defined in the Step's job expression. Outputs are either passed to the next Step in the workflow and/or to the connected destination app.

Example Output if that form submission example (see above section) was mapped to a connected case management app:

{
"data": {
"patient": {
"full_name": "John Doe",
"age_at_enrollment": 16,
"type": "new",
"source": "mobile-app"
}
}
}
