Syncing your CommCare form submissions to a PostgreSQL database

Before starting this tutorial please make sure:

  • You have signed up for OpenFn.org (it takes less than a minute!)
  • You have checked out our glossary and have an understanding of basic OpenFn and API terminology. Check out the pages below to get started
  • You have a CommCare application with at least one form configured. This is your source system.
  • You have a PostgreSQL database configured. This is your destination system.

If you don’t have a CommCare application or PostgreSQL database setup, you can also follow along with the prebuilt solution. Follow along at the links below:

  1. Mapping specifications document

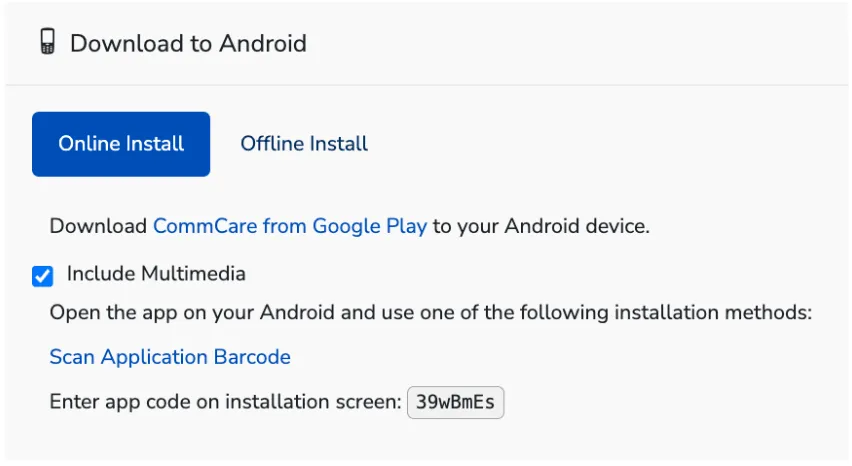

  2. Commcare application to download:
    • Username: testuser
    • Password: 123

install_cc_app

  1. Public report that shows records in the PostgreSQL database

Getting started​

In this walkthrough, we will be setting up an automatic data sync between CommCare and a PostgreSQL database. We will be syncing submissions coming from a CommCare Maternal and Newborn Health application that has a Register a New Patient form.

tip

Whenever a CommCare user registers a new patient, the patient details will automatically be synced to an already configured PostgreSQL database to enable real-time monitoring and analytics on data collected in the field. For example, this database can quickly be connected to a dashboard that collects aggregate data on patients registered!

cc-postgres

This integration can be broken up into two parts:

  1. Getting data from your source system into OpenFn to trigger your workflow
  2. Transforming and loading this data to your destination system

… let’s get started!

Getting data from CommCare​

There are two ways to get your CommCare form submissions in OpenFn.

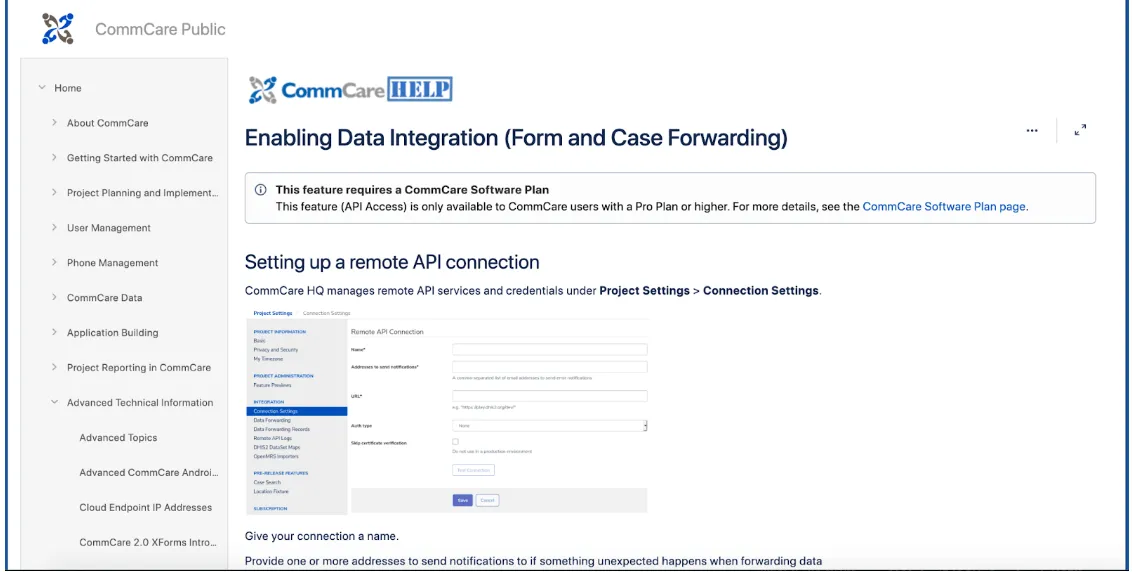

Option 1: Webhook to forward cases and/or forms in real-time from CommCare to OpenFn using REST service​

CommCareHQ has a native data forwarding feature that provides a webhook/REST service that can be pointed to the destination of your choice (i.e., your OpenFn workflow). When a webhook is configured, any Commcare forms submitted are automatically forwarded to the designated endpoint, such as your OpenFn workflow. After data forwarding is set up, it happens automatically, in real-time for all forms and cases. Learn more about configuring a webhook here.

option1

Option 2: Extracting Commcare data via the REST API​

CommCare provides a robust REST API for extracting and loading data. This second option involves configuring a step in OpenFn to fetch CommCare submissions via a GET HTTP request with parameters to filter your data query. CommCare API access requires a paid CommCare plan.

The main advantage of using the webhook is that your data is forwarded to the destination system in real-time. However, the List Forms API is also advantageous because it enables users to extract data in bulk on a scheduled basis, for syncing historical data every month on the 30th, for example. Deciding on which option to go with depends on your business requirements.

Set up a workflow using Option 1​

  1. Open up an existing project and create a new workflow

create_new_workflow

  1. Create a new “Webhook” trigger to schedule this extract job.

create_trigger

Make sure you have copied the webhook URL from your OpenFn workflow into CommCare. Each form submitted in CommCare will be automatically sent to OpenFn and will trigger your new workflow.

Transforming and loading CommCare data to a PostgreSQL database​

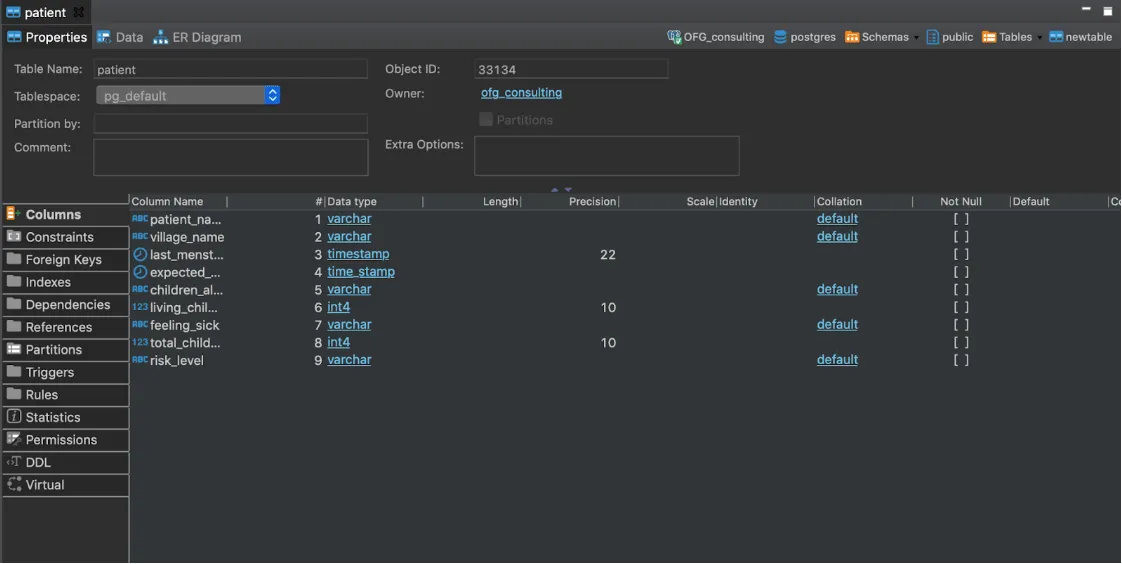

  1. You should have a database configured and a username provided for OpenFn to read and write data in your target DB tables. For this demo, we have configured the database like this to capture the CommCare form data. Check out the this page for how to create your own mapping specification document to map data elements to be exchanged.

db_config

  1. Create a new step with the postgresql adaptor for loading the CommCare data into your destination database.

configure_job_postgres

  1. Create a PostgreSQL credential which will be used by the step to authenticate with the database.

add_credential_postgres

  1. Writing the step: For this step we will use the upsert operation to insert/update records in the destination patient table and use patient_id as the primary key. An upsert will update an existing row if a specified value already exists in a table, and insert a new row if the specified value doesn't already exist.
upsert('patient', 'ON CONSTRAINT patient_pk', {
  patient_id: dataValue('data.patient_name'),
  patient_name: dataValue('data.patient_name'),
  village_name: dataValue('data.village_name'),
  last_menstrual_period: dataValue('data.last_menstrual_period'),
  expected_delivery_date: dataValue('data.expected_delivery_date'),
  children_alive: dataValue('data.children_alive'),
  living_children: dataValue('data.living_children'),
  feeling_sick: dataValue('data.feeling_sick'),
  total_children: dataValue('data.Total_children'),
  risk_level: dataValue('data.Risk_level'),
});

Feel free to modify the code above to reflect your CommCare and database configuration according to your mapping specifications.

create-job

Time to test!​

  1. Submit a form in CommCare
  2. If you have enabled data forwarding, your workflow should should be triggered automatically.
  3. If you have not enabled data forwarding and set up a FETCH step instead, run the step (ensure the received_on_start and received_on_start dates in the FETCH are appropriate).
  4. Run the FETCH step. If the fetch step passes, the “Load to DB” step should automatically run.

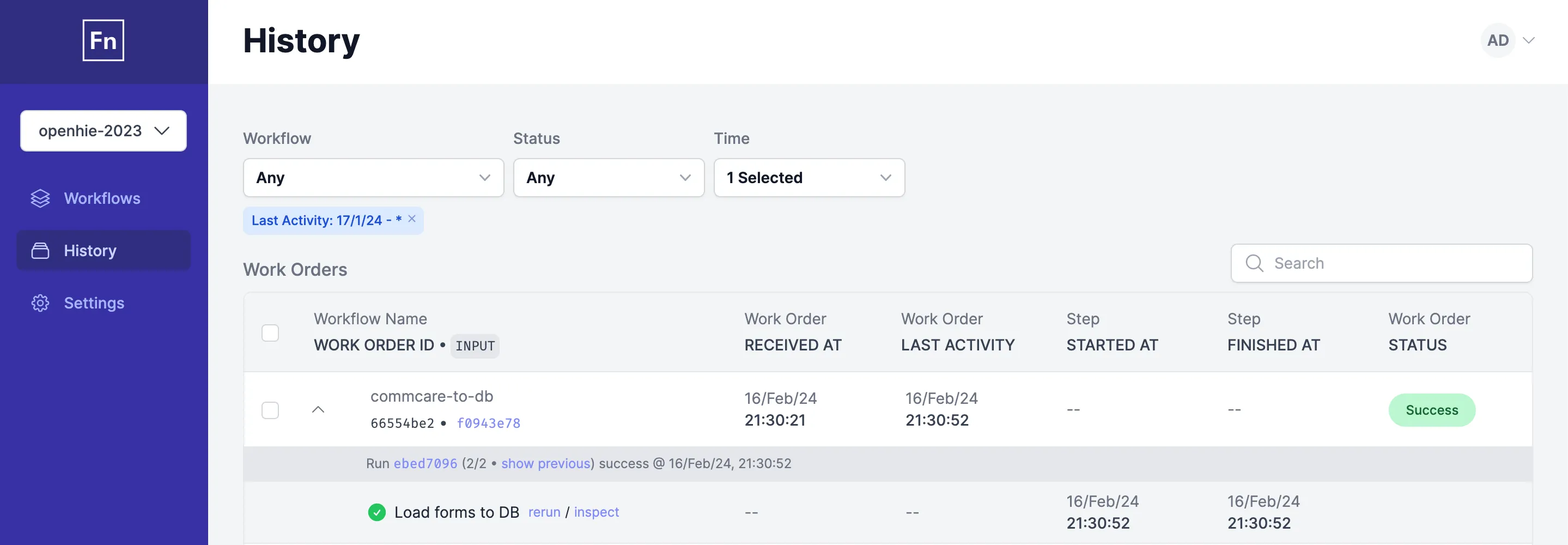

  5. Check out the History and ensure that the work order was successful.

activity_history_final

info

What do do if your run fails:

  1. Open the run to inspect the error log
  2. Adjust the step to resolve the issue and re-run the step as needed by clicking the "rerun" button in History or the "Re-run from here" button on the Inspector
  3. Check out the PostgreSQL common errors page for more details!

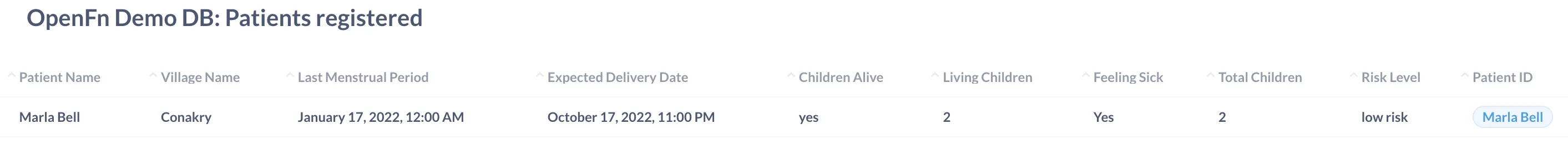

  1. Finally, refresh your database and check out the new submission data!

metabase

While this guide is specifically for PostgreSQL databases, you can generally follow these same steps for other database types (e.g., MS SQL or MySQL)—simply leverage a different adaptor in your step configuration.

Other resources to check out:

  1. OpenFn Job Library
  2. OpenFn Docs ‘App’ pages for CommCare and Postgres

Any questions? Comments? New configuration ideas? Please reach out to us with a post on the OpenFn Community forum.
