History & Search in OpenFn

For platform administrators, History is your central console for monitoring all activity across your active Workflows. Read on to understand its key components.

History​

The History page provides a list of all of the Work Orders and Runs that have been processed in a Project.

History

Workflow execution: Work Orders and Runs​

OpenFn Workflows are executed as follows:

  1. A Workflow Trigger is activated by a webhook event, cron timer, or manual action.
  2. This creates a Work Order--a request to run a Workflow with a given input (e.g, a new form submission or patient record that needs to be processed). For a Work Order to be cpmpleted, it should reach an ending Step succesfully (without errors) - this ensures that the processing of has been completed.
  3. A Run is then executed to try to complete the Workflow successfully. This Run will have a status code, indicating whether the Workflow Steps were successfully processed.
  4. If the 1st Run fails, then you can rerun it to "retry" the workflow. A 2nd Run will be created. If successful, then both the Run and related Work Order will be updated with a success status.

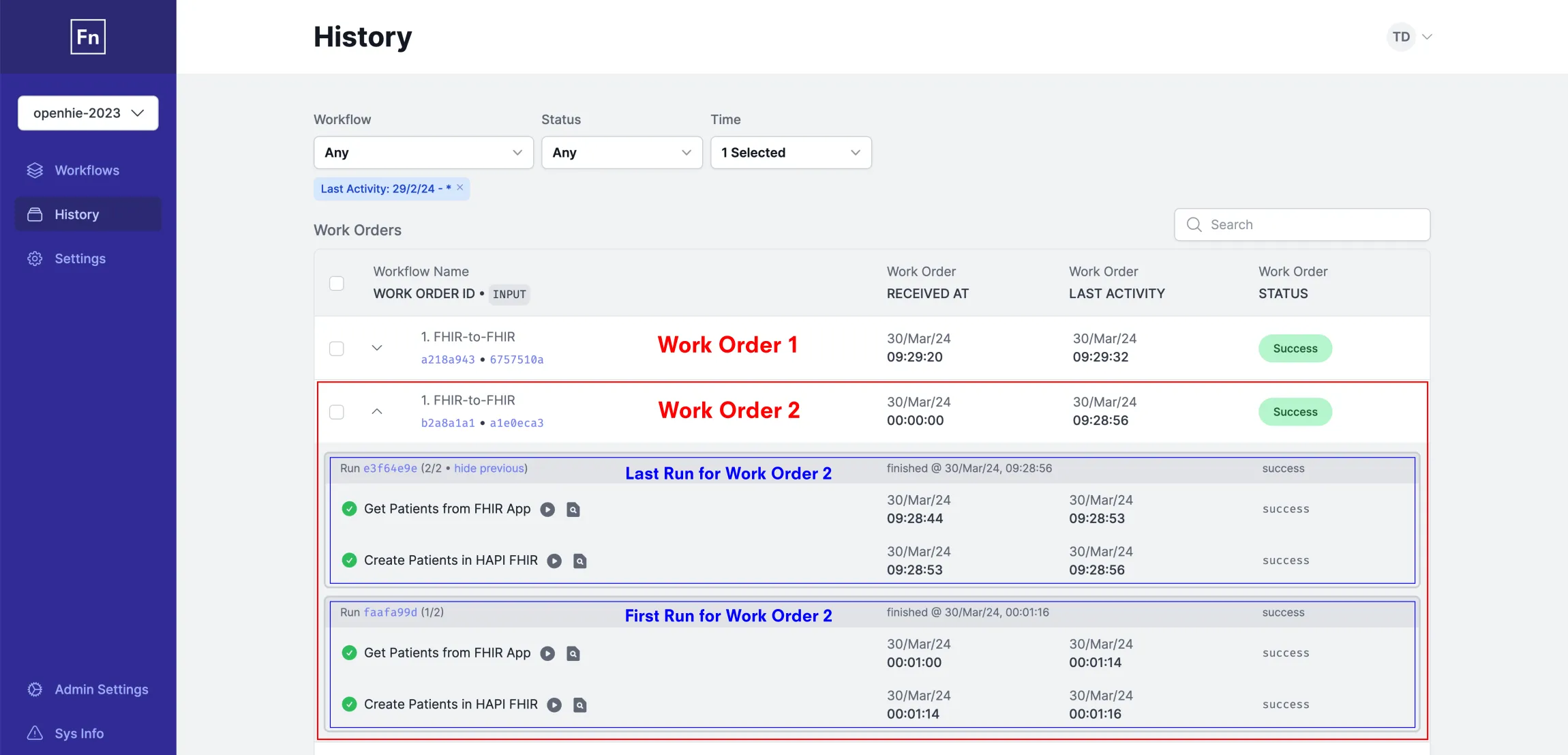

History Page

Check out the other pages in this docs section to learn more about inspecting Runs, troubleshooting, and rerunning failed Runs.

How Search Works​

Via the searchbar on the history page you can find work orders whose related input/output dataclips or run logs contain specific text strings. By default, the system will search run logs only but you can select to search any or all of three options:

Search Options

  1. OpenFn UUIDs for workorders, runs, or steps
  2. Input/Output dataclip bodies
  3. Run logs

If searching for text within an input/output dataclip or run logs, a tsvector search is applied. This method of searching allows you to find work orders quickly and allows for partial string matches across all text in the run logs and across the "keys" and "values" of your dataclips.

Partial string mathcing working best at the start of words, so if you're looking for items matching "newPatient" it's better to search for "newPat" than for "tient". (When in doubt, whole words or IDs produce the best results.)

Search & Filter Results​

Even though you can search for text strings that appear in specific run logs or dataclips, it's important to remember that the results returned are still work orders. If the output dataclips of the third step in the first run of work order "123" matches your text search, you'll see work order "123" in your results.
