Credentials

Credentials are used to authorize connections to external systems. Some Adaptors will use credentials to fetch meta-data from source and destination applications and make the job writing process easier.

A Credentials' values can only be viewed or edited by a single user — their "owner" (the user that created that credential). All the collaborators on a Project can choose from all credentials for the Project when defining a job.

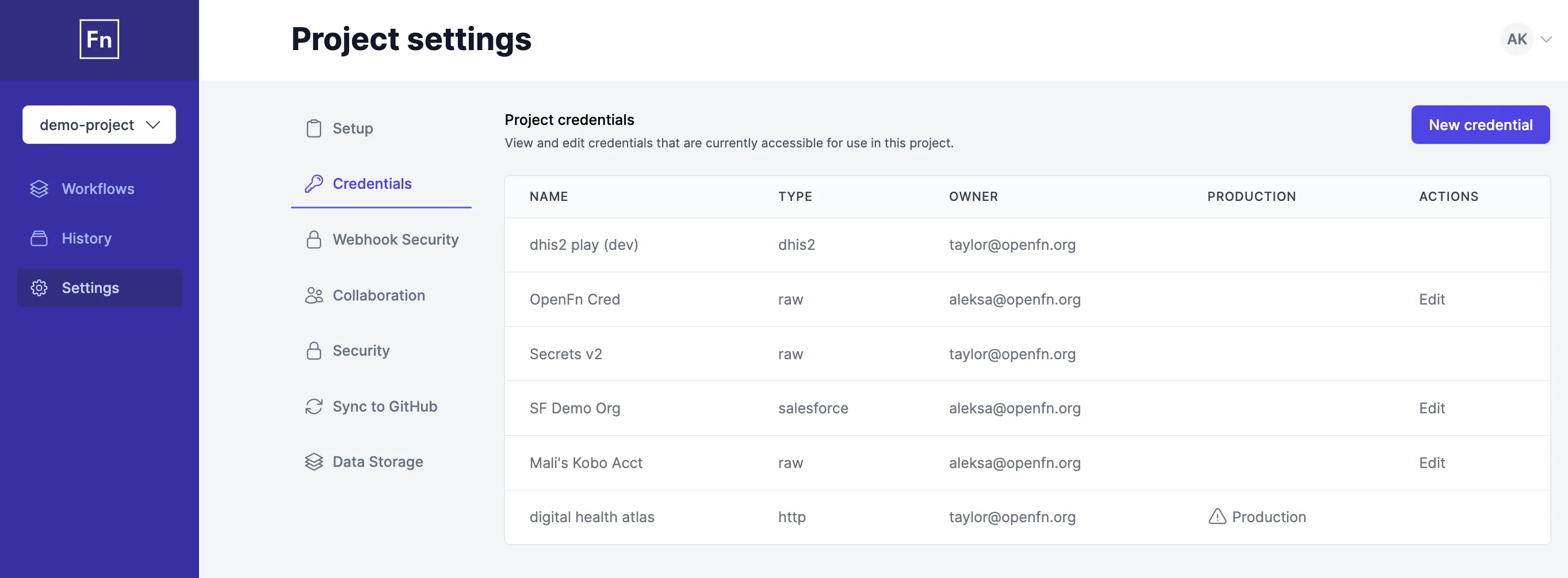

Credentials Page

Create a new Credential​

You can create a new Credential while configuring a new Step in your Workflow, or via the Settings > Credentials page. Read this for more on managing credentials.

Understand the app-specific credentials​

Check out the dedicated Adaptor docs page for your app to inspect the configuration schema and see what credential details will be required to authenticate with your app (e.g., username, api_key).

If your app is not listed in the Adaptors section, then inspect your app's API documentation to see what is required for "authentication". You can then create a Raw JSON Credential in OpenFn to define whatever credential inputs are required. E.g.:

{
  "apiKey": "someSecretKey",
  "baseUrl": "https://example.com/api/v2"
}

Note that some systems (Salesforce, OpenMRS, DHIS2) require an instanceUrl, host, or ApiUrl. While most adaptors will handle a "trailing slash" in a URL gracefully, when in doubt you should leave it off. For example:

  • prefer https://login.salesforce.com to https://login.salesforce.com/,
  • use http://demo.openmrs.org/openmrs instead of http://demo.openmrs.org/openmrs/,
  • and write https://play.dhis2.org rather than https://play.dhis2.org/.

Use OAuth2 credentials​

If OAuth2 clients have been configured on your OpenFn instance, you can use them create OAuth credentials:

  1. First you pick an OAuth credential type from the "New Credential" interface.
  2. Then you give it a name.
  3. You optionally select additional "scopes" that you want to use. (See the in-app link to third-party documentation on scopes, depending on what application you're using.)
  4. And then click "Sign in with ______".

You will be asked by the third-party application to verify your identity and that you'd like to use OAuth. Once you accept, back on OpenFn you'll be able to save and use your new credential just like any other.

tip

If you're using a deployed instance of OpenFn and can't find the OAuth credential type for your app, please contact the superuser responsible for your instance setup and request them to set up OAuth clients for your application. Users of the hosted OpenFn platform SaaS can post on community.openfn.org or send an email to support@openfn.org.

e.g., GoogleSheets OAuth Credential​

Note the credential selects only required scopes for Google Sheets.

Google OAuth

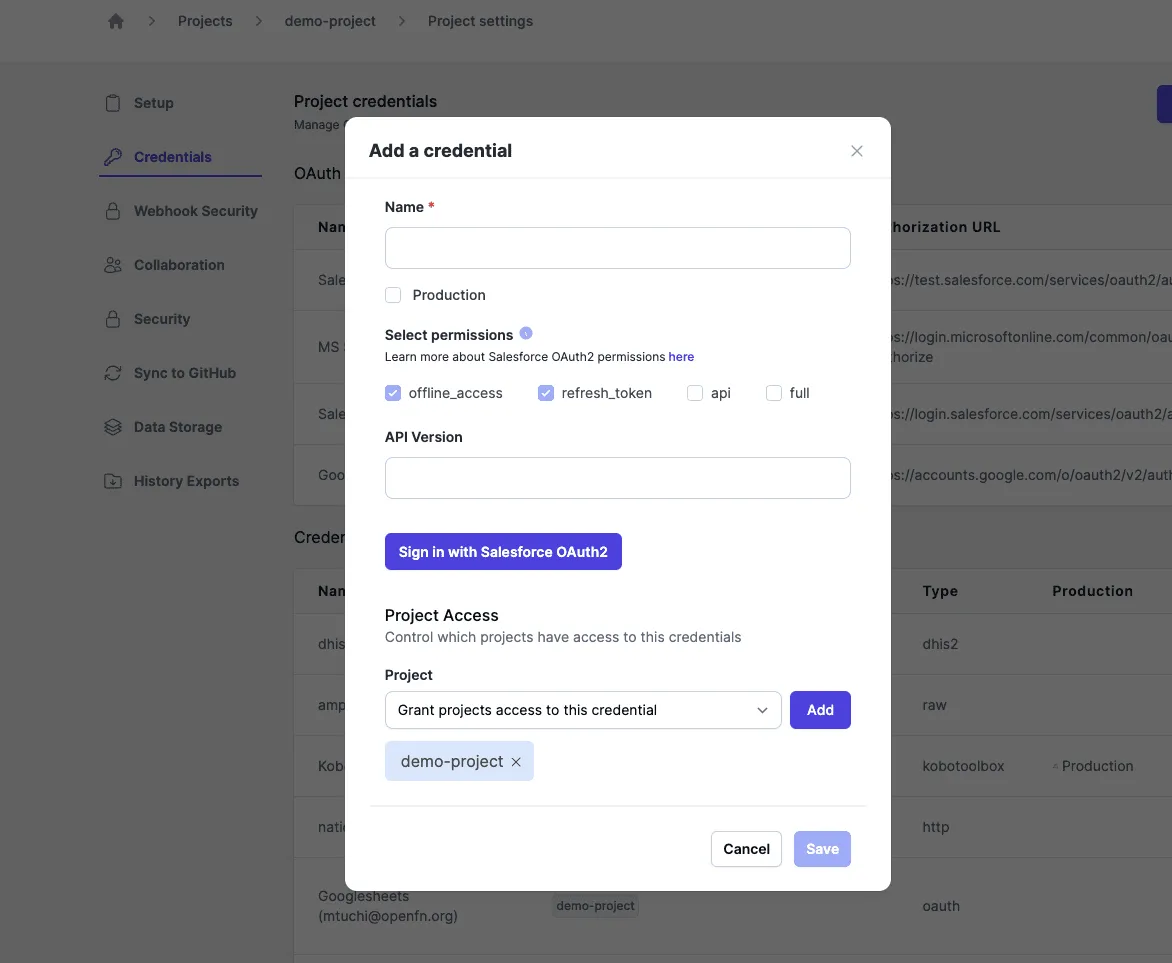

e.g., Salesforce OAuth Credential​

Note that you can choose which scopes to access on Salesforce.

Salseforce OAuth

tip

Check out the dedicated Adaptor docs page for app-specific credential guidance.

Creating a dedicated "integration user" for your OpenFn workflow​

To keep target systems as secure and controlled as possible, we recommend that credentials used in the integration be granted API-only access to the target application.

You can use your personal user as an OpenFn credential for your workflow, but we recommend that you create a dedicated "OpenFn" integration user or service account user to access your target applications. For example, in Salesforce, you can create an API-only user with a special API-only license type to perform automated tasks and integrations without requiring full user access.

API-only users might not be available in every target system, but many do offer the creation of user roles that have API-only access permissions, and may allow you to determine the scopes for which APIs or endpoints users can access. Even when an API only user is not available in the target system, best practices dictate that an integration/service user is used for all automation tasks to maintain a secure audit trail.

API-only access minimizes the risks of data breaches by:

  • Ensuring Traceability: Accessing with an integration user provides an audit trail of who logged in when and what changes were made. For example, if you used your personal user login for a system in an integration implementation, it would be hard to know if it was YOU, a human, who made a change vs. an automated system action via the API user.

  • Minimizing breach impact: The user can be deactivated if compromised, and log in to the frontend with the breached API credential is automatically disallowed, limiting attack vectors.

  • Ensuring the principle of least privilege: Each integration user need only have access to the subset of data supporting its specific use case.

Check out the docs on Security Best Practices to learn more.
